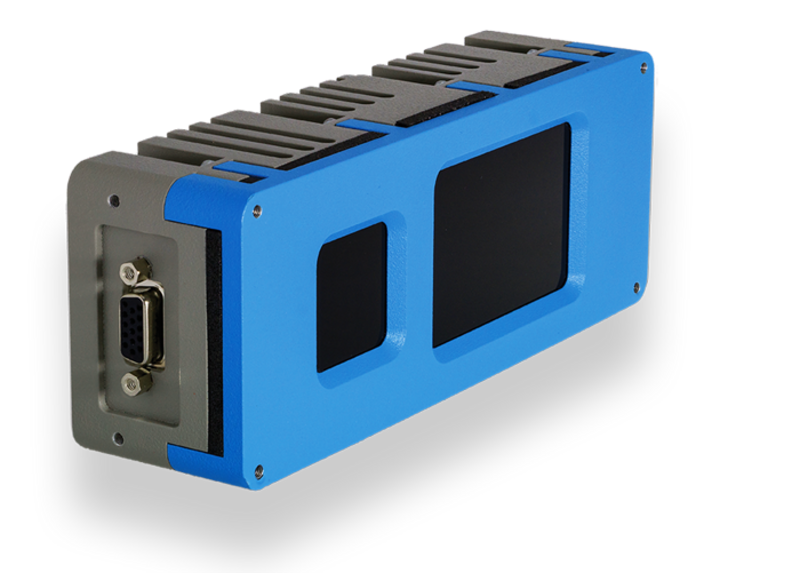

Die Argos 3D - Pulse ist ein neuer Tiefensensor, der auf dem Time-of-Flight (ToF) Prinzip basiert und mit einer VGA Auflösung für bessere Genauigkeit ausgestattet ist. Der flexible Sensor liefert klassenbeste Noise Performance und genaueste 3D Tiefendaten. Die kompakte Form und Einbauoption in Kombination mit der ToF Technologie macht die Argos3D - Pulse Kamera eine perfekte Wahl für eine Vielzahl von 3D Applikationen, die eine hohe Genauigkeit erfordern.



Highlights 3D Tiefensensor mit VGA Auflösung 640x 480 Pixel ToF FoV 60° oder 80° Reichweite bis zu 5 m* Indoor Gigabit Ethernet Schutzklasse IP67 Gehäuse
Distanzmessungen, HMI für Robotik, Medizintechnik, Robotik,
Lieferumfang Argos 3D – Pulse Extra Zubehör: Netzwerk-Kabel SW / Support Link NetzteilAllgemeine Informationen | |
---|---|
Certifications | CE Directive 2014/35/EU |
FPS | 40 fps |
Application Range | 5 m Indoor |
Cooling | Passive |
Temperature Range | 45 °C |
Width | 173 mm |
Protection Class | IP 67 |
Height | 46 mm |
Depth | 65 mm |
Certifications | Eye Safety IEC 60825-1:2014 |
Optische Informationen | |
Depth Sensing Technology | Time of Flight (ToF) |
Resolution | 640 Pixel |
Resolution | 480 Pixel |
FoV | 80 ° |
Illumination | 2 x Active IR 850nm / 940nm |
Sensor Name | VGA 3D Depth Sensor |
# LEDs | 8 x Laser based |
Software | |
Frameworks | LabView |
Frameworks | Halcon |
Frameworks | MetriCam |
Frameworks | MATLAB |
Interfaces | |
I/O | 1 x Trigger In , 1 x GPIO |
Kommunikation | 1 x ETH (Gbit/s) |
